Why Choose an Air Core Reactor for Harmonic Mitigation?

Harmonic distortion has become a pressing concern for EPC contractors and design institutes managing high-voltage substations across China and Belt and Road regions. When selecting equipment to address these challenges, choosing an air core reactor offers a unique advantage: its coreless design eliminates magnetic saturation risks entirely, ensuring stable inductance and reliable performance under variable harmonic loads. Unlike iron core alternatives that degrade under nonlinear conditions, these specialized components maintain consistent filtering characteristics, protecting sensitive equipment while meeting stringent IEEE 519 compliance requirements. This inherent stability makes them the preferred choice for 110-330kV substation projects demanding long-term power quality assurance.

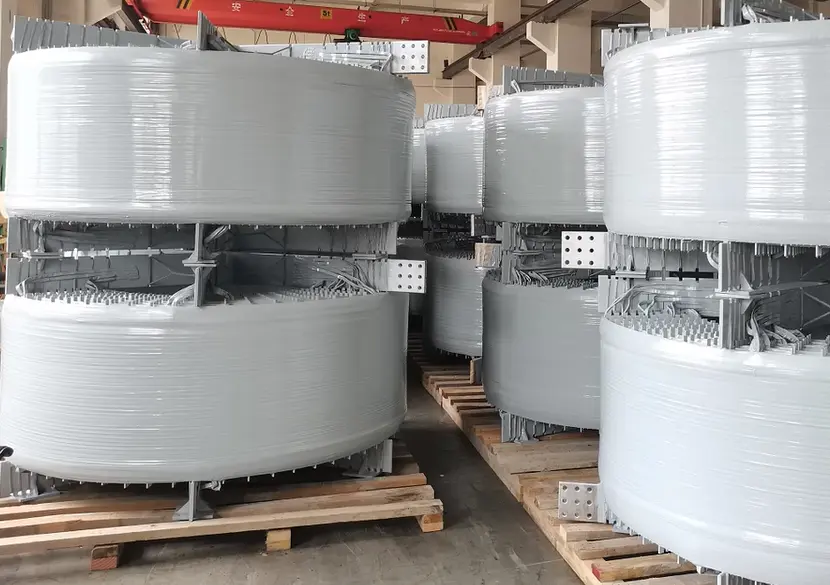

Understanding Air Core Reactors in Harmonic Mitigation

The Technical Foundation of Coreless Design

Modern power systems face rising harmonic problems from renewable energy integration, nonlinear loads, and advanced inverter-based equipment. In these conditions, regular iron core reactors don't work well because their magnetic cores get too hot when they are exposed to distorted current patterns. This makes them less effective at filtering at the very moment when defense is needed the most.

The engineering theory behind an air core reactor focuses around building inductive reactance without relying on ferromagnetic materials. Manufacturers control the impedance by winding high-purity aluminum or copper wires in carefully calculated circular patterns. These patterns stay linear across the entire working range. This main difference makes sure that when harmonic currents try to move thru your system, the reactor always stands in their way, no matter what the load is or how the temperature changes outside.

How Inductive Reactance Targets Harmonic Distortion

When these reactors are linked in series with capacitor banks, they make tuned filters that target specific harmonic frequencies that cause problems in industrial distribution networks. These frequencies are usually the 5th, 7th, and 11th harmonics. This method is shown by the CKGKL Dry-type Air Core Series Reactor, which works at a rated voltage of 3464.1V while stopping harmonic voltage increase and lowering system waveform distortion. By limiting inrush currents during capacitor swapping, the device solves more than one power quality problem with a single application.

The resonant frequency of your filter circuit is found by figuring out the mathematical relationship between inductance (L) and capacitance (C). Precision matters tremendously in these calculations; even minor deviations can shift the tuning point away from target harmonics, rendering your mitigation strategy ineffective. Quality manufacturers maintain inductance tolerances within ±3% as standard, with custom options achieving ±1% accuracy for applications demanding exceptional precision. This level of control allows electrical engineers to design filter circuits with confidence, knowing that installed performance will match theoretical predictions.

Key Technical Parameters That Drive Performance

Procurement teams evaluating series reactors for harmonic mitigation must examine several critical specifications beyond basic inductance values. The Basic Insulation Level (BIL) determines how well the reactor withstands transient overvoltages from lightning strikes or switching operations—particularly vital for outdoor substation installations where exposure to atmospheric conditions is unavoidable. The CKGKL series uses enclosed windings made of glass-fiber reinforced epoxy resin. This lets it withstand 30kV impulse voltages and keep its shape in dusty settings at desert levels.

The way a reactor gets rid of heat caused by conductor resistance and eddy current losses is shown by its temperature rise characteristics. Superior designs keep losses under 0.05% at full load, reducing heat stress on insulation systems and extending working lifetimes. This efficiency proves especially useful in locations where ambient temperatures already approach equipment rating limits, such as substations in hot or arid climates throughout the Belt and Road route.

Dynamic and thermal stability—two factors frequently emphasized by design institutes—depend on mechanical strength and electrical resistance. When short-circuit faults occur, electromagnetic forces acting on the windings can exceed 100 times normal operating levels. The rigid compression systems and fully encapsulated construction methods used in modern air core reactors prevent winding movement during these stress events, maintaining geometric stability that protects both the reactor itself and adjacent equipment from collateral damage.

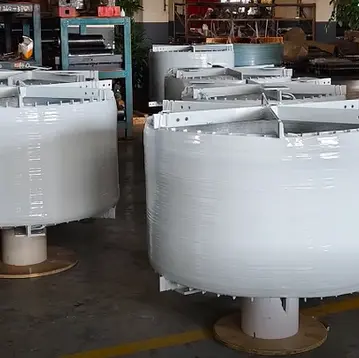

Advantages of Air Core Reactors Over Traditional Reactors

Elimination of Magnetic Saturation Risks

The main technical benefit of coreless construction becomes clear when you look at how modern industrial buildings are usually loaded, which is not in a straight line. In iron core reactors, the B-H curve is not a straight line. As the flux density rises, the core gets closer to saturation, and small increases in the magnetizing force cause flux to rise less and less. Because of this saturation effect, the effective inductance drops right when harmonic currents are at their greatest. This makes it harder for the reactor to filter consistently.

The permeability of an air core reactor stays the same because air's magnetic properties stay linear across all useful flux densities. This means that the performance of your filtering is stable and reliable, even if your system is running at 50% load overnight or when demand spikes during work shifts. When electrical engineers use design calculations, they don't have to worry about how the calculations will work in the real world.

Reduced Core Losses and Enhanced Efficiency

Hysteresis and eddy current losses happen naturally in iron core designs because of the magnetic material. These losses show up as heat, which means stronger cooling systems are needed and the system works less efficiently overall. Because coreless reactors are energy-efficient, these loss processes are not present at all. Only conductor resistance (I²R losses) work as a heat source.

This edge in efficiency leads to real operational gains. Less heat production puts less stress on shielding systems, which makes equipment last longer and less likely to break down early. Less cooling needs mean that forced ventilation systems aren't needed, which makes installation easier and lowers both the initial cost and the ongoing cost of maintenance. Over the course of 30 to 40 years, the result adds up to a lot of money for energy companies and people in charge of industrial facilities.

Lighter Weight and Simplified Installation

When heavy magnetic steel is taken out of the design, equipment with the same electrical rating that is made of iron cores weighs a lot more. This lower weight makes it easier to build mounting platforms and support insulators, which is especially helpful when adding reactors to old substations that can't hold much weight. Transportation costs go down, and installation crews can handle units safer with tools that aren't as heavy.

Modern air core reactors have small footprints that get around another common problem in substation design: not having enough space. More and more, equipment that can do what it needs to do in a smaller space is becoming more and more valuable as urban substations are forced to handle growing loads within set property lines. Precision inductance tolerances make it possible for plug-and-play integration, which means that existing capacitor banks can be easily retrofitted without having to make major changes to control systems or safety methods.

Extended Operational Reliability and Service Life

For companies that manage infrastructure spread across various places, the fact that it doesn't need to be maintained may be the most appealing benefit. In contrast to oil-filled reactors that need to be sampled on a regular basis for dissolved gas analysis or leak fixes, dry-type air core units only need to be looked at to make sure the layer on the outside is still intact and the connections are tight. There are no fluids that need to be replaced or fluids that need to be monitored. Also, there are no risks of oil leaks polluting the environment.

Durability that is built into high-quality goods makes sure that they work reliably for decades of constant use. Specialized polyurethane topcoats that are resistant to UV light protect against damage from the sun, and cycloaliphatic epoxy systems keep their dielectric strength after thousands of temperature cycles. If these reactors are properly set up for their pollution class and seismic zone, they work reliably with little upkeep needed. This lets expert teams focus on other maintenance tasks.

Application Scenarios and Industry Use Cases

Power Distribution Networks and Substation Integration

Reactive power adjustment is what keeps voltage stable over long distances for utilities that use 110kV to 330kV transmission lines. When underground or overhead lines create too many capacitive charging currents during times of low load, voltage rise can hurt equipment or set off safety relays without a reason. By putting in series reactors in key substation locations, you can counteract this effect with inductive compensation. This keeps busbar voltages stable even when load conditions change during daily demand cycles.

The CKGKL Dry-type Air Core Series Reactor works especially well in substations because it keeps the voltage stable even when there are harmonics or intermittent power from renewable inverters. It gets harder and harder for grid operators to keep the quality of the power as more and more solar and wind power is added. Your strategy for reducing harmonics will still work even if your generation mix changes because coreless designs work consistently even when the waveform is distorted.

Renewable Energy Integration Challenges

Because they need power processors to keep the grid in sync, wind and solar collection units pose their own harmonic challenges. High-frequency switching harmonics are naturally produced by inverters. These can mess with safety switches, cause annoying trips, and speed up the aging of other substation components. Renewable energy sites are often located in remote areas that make servicing hard to get to. This puts a premium on equipment that doesn't need much care.

At collection points, series reactors are used to make up for capacitance in large buried cable networks while removing harmonics made by inverters at the same time. The dry design doesn't need any upkeep, which is especially helpful for green energy sites that don't have staff all the time and where regular service calls would be expensive and hard to arrange. By automatically meeting grid code power factor standards, these installations stay in good standing with transmission system owners and avoid expensive fines.

Heavy Industrial Facilities With Nonlinear Loads

A lot of harmonic currents are made by equipment in steel mills, chemical plants, and manufacturing facilities. For example, arc furnaces, rectifiers, variable frequency drives, and welding systems all change the way electricity flows in the network. If you don't control these harmonics, they can make transformers overheat, capacitors fail early, and sensitive process control systems stop working.

Industrial plants get rid of power factor penalties by putting in tuned filter circuits that have capacitor banks and series reactors. This method not only avoids utility surcharges, but it also keeps expensive production equipment safe from damage caused by voltage distortion. Being able to handle surge currents up to 100 times rated capacity makes sure that reactors can handle the rough conditions that are common in heavy industry, where equipment is often spinning and breaking down. To keep their accuracy, CNC machines and automatic assembly lines need clean power. Harmonic mitigation that works directly affects both product quality and production speed.

Commercial Building Retrofits and Infrastructure Upgrades

As more electronic equipment is added to hospitals, data centers, shopping malls, and other big business buildings, power quality problems become more common. Modern LED lighting systems, computer server loads, and HVAC systems with variable speed drives are hard for older electrical infrastructure that was built for linear resistive loads to handle. To make old distribution systems work with new ones again, you need solutions that work with old equipment and follow current fire safety rules.

When buildings are filled, where noise reports can lead to regulatory problems, it's important to have quiet operations. Quality air core reactors have sound pressure levels below 45dB thanks to rigid compression systems that keep vibrations to a minimum. This means they can be used in mechanical rooms that are close to areas where patients are cared for or offices. Concerns about safety can be addressed with flame-resistant building that meets NFPA 70 fire codes. This avoids the need for expensive vault construction and allows for low-cost upgrades that bring old systems up to date with modern power quality standards.

Procurement Considerations for B2B Clients

Evaluating Manufacturer Credentials and Quality Systems

To find a trusted series reactor provider, you should first check their manufacturing skills and quality management certifications. If a company has ISO 9001 certification, it means that they follow documented quality control procedures all the way thru the production process, from checking the raw materials to testing the finished product. Environmental management standards, such as ISO 14001, show a dedication to environmentally friendly production methods. This is becoming more and more important as environmental, social, and governance (ESG) factors enter purchasing choices.

Patent portfolios show how knowledgeable a company is in engineering and how innovative they have been in the past. Companies with foreign patents have shown new technology solutions that have been approved by examination methods in more than one country. This intellectual property suggests the manufacturing know-how and research funding that are needed to handle the tricky technical issues that come up in special projects.

Objective proof of success under normal conditions can be found in type test results from recognized labs. As part of these thorough tests, sample units are put thru tests that measure how well they can withstand lightning impulses, temperature rise, and partial discharges that make sure the design is sound. Routine test data from production units shows that the quality of making is the same for all products, not just test pieces that were specially made.

Customization Capabilities for Project-Specific Requirements

Customized equipment can meet project-specific requirements for voltage, inductance, enclosure configuration, and protection levels. Manufacturers offering flexible solutions and reasonable lead times provide greater design freedom. Options such as IP54/IP65 protection and tighter ±1% inductance tolerances help optimize equipment for harsh environments and specialized harmonic-filtering applications.

Technical Support Throughout the Project Lifecycle

Comprehensive after-sales support provides installation guidance, field adjustments, and multilingual assistance throughout the project lifecycle. 24/7 technical service across time zones minimizes delays, while training helps operators properly use, inspect, and monitor equipment. Well-trained staff can recognize early warning signs and address minor issues before they become costly emergencies.

Maintenance and Long-Term Performance Optimization

Routine Inspection Protocols for Sustained Reliability

Routine inspections should match operating conditions and duty cycles. Check epoxy coatings for cracks, tracking, discoloration, and heat damage, and clean contaminated surfaces regularly. Verify terminal torque with calibrated tools to prevent overheating. Infrared thermography can identify temperature imbalances, connection issues, abnormal loading, and developing failures before reliability is affected.

Condition Monitoring for Predictive Maintenance

Condition monitoring tracks winding temperature, ambient conditions, and electrical parameters to detect gradual deterioration before failures occur. Periodic partial discharge testing identifies insulation aging, while long-term trends support planned replacement. Acoustic noise measurements also reveal mechanical or insulation problems and verify compliance with environmental limits, enabling effective predictive maintenance.

Troubleshooting Common Operating Issues

Systematic diagnostics can identify insulation failure, broken conductors, overloads, and cooling problems. Inductance and resistance measurements reveal electrical faults, while comparing phase readings helps locate affected units. Excessive temperature may require load adjustment, cleaning, or replacement. Magnetic field measurements also verify safe clearances when nearby substation equipment is added.

Conclusion

Harmonic reduction is still a big problem for EPC companies and design institutes that are in charge of current substation projects. Concerns raised by electrical engineers in charge of 110-330kV installations can be addressed by the technical benefits of air core reactors, which include no magnetic saturation, consistent performance under nonlinear loads, and operation that doesn't require any maintenance. The CKGKL Dry-type Air Core Series Reactor is a great example of how modern production methods can give demanding uses in a wide range of climates the dynamic stability, insulation performance, and environmental longevity they need. When buying something, it's important to think about both the short-term technical needs and the long-term operational realities. Coreless designs offer great value because they require less upkeep, last longer, and protect power quality reliably for decades of constant use.

FAQ

1.What distinguishes air core reactors from iron core alternatives in harmonic applications?

The main difference is how magnets behave when current waveforms are distorted. When iron cores are exposed to a lot of harmonics, they become saturated. This makes the inductance change depending on the load. Coreless designs keep the permeability constant, so the filtering works the same way no matter what the system is doing. This linearity is very important for reducing harmonics that are made by inverters for green energy or industrial power systems.

2.How do clearance requirements affect installation planning?

Because magnetic flux spreads out without a core, keeping certain distances from metallic structures stops eddy current heating in equipment nearby. Magnetic clearance diagrams from manufacturers show how far away from fences, cable trays, and structural steel you should be to stay safe. These rules usually make the area 1-2 meters bigger than sealed designs, but they get rid of the fire risks that come with oil-filled options.

3.Can retrofit installations be made to existing substation infrastructure?

Precision inductance limits make it possible to connect to existing capacitor banks without having to re-calibrate safety switches or change the way controls work. Because they are lighter than iron core units, they don't need as much structural support. This means that retrofits can be done in old substations that can't hold as much weight. Custom enclosure choices can be made to fit the needs of a particular spot without requiring a lot of changes to the infrastructure.

Partner With Xi'an Xikai for Proven Harmonic Mitigation Solutions

Xi'an Xikai Medium & Low Voltage Electric Co., Ltd. has been making products for decades and can help companies that need solid series reactors for complicated substation projects. Our CKGKL Dry-type Air Core Series Reactor goes thru strict quality control that is backed up by ISO 9001 certification, 72-hour thermal cycling tests, and full type testing that meets IEC standards. We can customize voltage ratings up to 36kV, protection class options from IP54 to IP65, and inductance tolerances that meet your exact filter tuning needs. We can do all of this within competitive lead times that support your project schedules. As a reliable air core reactor manufacturer, we help utilities and EPC companies all along the Belt and Road. Throughout the lifecycle of the equipment, we offer expert support in multiple languages and application engineering help. Contact our team at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com to discuss your specific harmonic mitigation needs and find out how our tried-and-true solutions can improve the power quality across all of your infrastructure.
