Choosing a Dry-type Air Core Reactor for Industrial Power Systems

When engineers and procurement managers evaluate shunt reactors for 110–330 kV substations, the dry-type air core reactor stands out as a technically sound, low-maintenance choice. Unlike oil-filled alternatives, it delivers constant inductive reactance with zero magnetic saturation, no fire risk from insulating oil, and a service life exceeding 30 years under IEC 60076-6 compliance. This guide walks through the core selection criteria—dynamic thermal stability, inductance linearity, BIL rating, and outdoor protection—so your project team can move from specification to procurement with confidence.

​​​​​​​

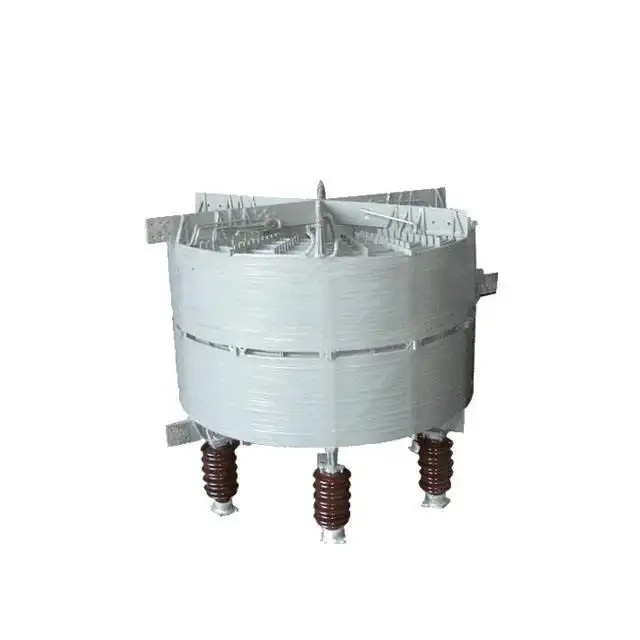

What Makes a Dry-type Air Core Reactor Different

The Physics Behind Linear Inductance

There is no ferromagnetic core in a dry-type air core reactor. Instead, aluminum or copper windings are enclosed in a fiberglass-epoxy matrix to create inductive reactance. This design creates a 100% linear inductance no matter how strong the current is, which is something that iron-core designs cannot do without running the risk of saturation. Within the full working range, IEC 60076-6 says that the inductance tolerance for power-class shunt reactors must stay within ±3%. Air-core geometry regularly meets this standard.

Since there is no iron in the core, there are no hysteresis or eddy current losses. This lowers the overall winding losses and the running costs over the life of the product. Since reactive power correction runs all the time in high-voltage substations, these savings add up over many years of use.

Insulation Classes and Thermal Management

The insulation class chosen during planning determines how well the insulation manages heat. It is recommended that Class F (155 °C) be used for 110–220 kV applications and Class H (180 °C) be used for 330–500 kV applications or harsh desert environments. The open winding structure and chimney effect of natural air cooling (AN cooling mode) keep the temperature rise within acceptable limits without the need for any extra forced-cooling equipment.

Key Technical Parameters for Selection

Inductance, Insulation, and Environmental Protection Criteria

To pick the best dry-type air core reactor for your substation, you need to make sure that six important factors match up with your system study:

The most common procurement mistake on EPC projects is picking the wrong set of parameters. Before a purchase order is issued, the following factors must be carefully checked:

• Rated inductance and tolerance: Check the ±3% tolerance and rated inductance according to IEC 60076-6. Deviations can make reactive correction less accurate and lead to voltage increase when the circuit is turned on.
• Dynamic and thermal short-circuit withstand: The winding must be able to handle uneven fault currents for at least 0.25 seconds without deforming. The fiberglass-epoxy covering forms a single cylinder that can withstand electromagnetic forces acting in both directions.
• Basic Insulation Level (BIL): BIL for the dry-type air core reactor is usually 550 kV for 110 kV circuits. It goes up to 950 kV for 220 kV. IEC 60060-1 says that type test results must confirm that the lightning charge can be handled.
• Partial discharge level: High-quality units need PD < 10 pC, which is proven by regular tests done in the factory. Values above this level show insulation holes that can speed up the aging of the dielectric.
• Stray magnetic field clearance: The shape of the air core creates a large leaking field. To avoid induced eddy-current heating, manufacturers must provide field maps and installation plans must keep safe distances from metal fences, control cable trays, and strengthened concrete rebar.
• Weather and pollution protection: For outdoor sites near the coast or in industrial areas, you need a UV-resistant, water-repellent silicone covering and an anti-tracking varnish that is rated for IEC 60815 pollution intensity class III or IV.

Your project team should ask for type test reports, material certifications, and factory acceptance test protocols based on these parameters before the contract is awarded.

Dry-type Air Core Reactor vs. Other Reactor Technologies

Maintenance Burden, Saturation Risk, and Lifecycle Cost

There is sometimes disagreement among EPC project managers about whether to choose oil-filled, iron-core, or dry-type air core reactors. Each technology has a good use case, but when it comes to high-voltage outdoor uses, there is a big performance gap.

There is always a chance that oil will leak from reactors that are filled with oil, so they need catch basins, fire suppression systems, and dissolved gas analyses (DGA) on a regular basis. Every three to five years, maintenance is usually done, which includes checking the insulation power-factor and taking samples of the oil. A dry-type air core reactor, on the other hand, only needs to have the surface layer checked for tracking or UV damage on a regular basis, the electrical connections checked for torque, and the insulator cleaned—no oil needs to be handled at all.

Iron-core reactors are small, but they can become magnetically saturated when there are short-term overcurrents. This makes the inductance drop just when the system needs it the most. When linearity is very important in SVC (Static Var Compensator) or harmonic-filter tasks, the air-core variant is the best option. According to a study released in IEEE Transactions on Power Delivery, dry-type technology usually pays for itself in eight to twelve years of ongoing service because it requires less maintenance.

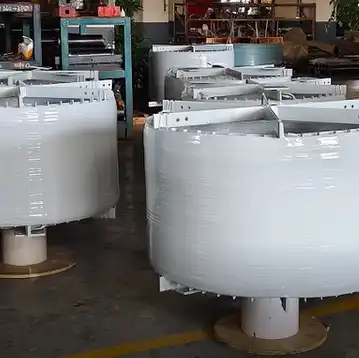

The BKGKL Dry-type Air Core Shunt Reactor: A Practical Reference Point

Reliable Shunt Compensation with Low Maintenance and Global Compliance

The BKGKL series from Xi'an Xikai is connected in parallel on the low-voltage side of 110 kV, 220 kV, and 500 kV substations to balance out the capacitive reactive power that comes from long overhead transmission lines and cable systems. This keeps the voltage profiles stable across the distribution network.

The BKGKL dry-type air core reactor has Tier-1 aluminum windings that are encased in multiple layers of epoxy, achieving Class F or H insulation performance. The air-core design completely eliminates the risk of magnetic saturation, and the modular winding structure lets the plant grow without affecting the stability of the unit. Here are the core advantages of this device:

• Overheating prevention: Epoxy-coated aluminum windings avoid corrosion and thermal stress during constant rated-current operation, keeping the rise in winding temperature within the limits of the insulation class.
• Low maintenance: The dry-type air core reactor design gets rid of the risk of oil leaks and the loss of insulation that happens when water gets into oil-filled tanks.
• Compliance breadth: Pre-engineered configurations meet regional standards for CE (EU), UL/cUL (North America), and GOST-R (CIS), which makes it possible for Belt and Road projects to be used in a number of different regulatory areas.
• Custom configurations: Types that are rated for deserts (IP55 equivalent protection), are resistant to earthquakes (Zone 4), and are IoT-enabled with real-time heat tracking are all available to meet the needs of each site.
• Sustainability: The construction doesn't use SF6 and the aluminum windings can be recycled, which is in line with today's environmental procurement policies.

These benefits take care of the most common problems that come up with big EPC projects: keeping the building cool while it is running all the time, being exposed to outdoor pollution, and having to keep a lot of paperwork for multiple jurisdictions. Before being sent out, every BKGKL unit goes through full ISO 9001 and ISO 14001 quality control tracking, as well as 100% impedance verification and partial discharge testing to < 10 pC.

Procurement Checklist for EPC and Design Institute Teams

Technical Documentation, Track Record, and Site-Specific Data

A organized buying process cuts down on specification mistakes and speeds up the decision-making process, which usually takes 3–6 months for 110–330 kV substation projects. Before issuing an RFQ, confirm the following:

Verify that the supplier can give you type test reports, not just regular test certificates, that cover things like short-circuit withstand, heat run, and lightning impulse withstand. When State Grid and Southern Grid look at bids, type tests done by approved third-party labs are given more weight. To help with substation layout approval, ask for field maps that show the stray magnetic flux density at 1 m, 3 m, and 5 m clearance radii.

Evaluate the supplier's track record on projects of comparable voltage class and geographic scope. Xi'an Xikai has been in business for more than 25 years and has products that are used in more than 30 countries for State Grid systems, rail transportation, petrochemical sites, and green energy substations. This large amount of proven application data backs up reasons for lowering risk during the owner acceptance stages.

Conclusion

A well-designed dry-type air core reactor has long outdoor service life, low upkeep, and constant inductance that oil-filled and iron-core options cannot easily match in high-voltage substations. The decisive selection criteria—BIL compliance, short-circuit withstand, PD levels, stray-field clearance, and outdoor coating durability—are all verifiable through documented type tests. When procurement teams match these factors with their technical requirements and pick suppliers with quality management systems that can be audited and international project references, they set up their projects to work reliably on the grid for a long time.

FAQ

1. What is the recommended magnetic clearance for an outdoor air core shunt reactor?

There is a large leaking magnetic field around the unit because there is no iron core to control the stray flux. Field density maps must be given by manufacturers. As a general rule, metal fences, cable trays, and concrete rebar need to be spaced out according to their inductance and current ratings. As part of the design confirmation package, you should always ask the supplier for calculated clearance data.

2. How often does a dry-type air core reactor need maintenance?

Maintenance is mostly about seeing and fixing things. Once a year, inspections are usually done to look for tracking or UV damage in the surface coating, check the connection strength, and clean the insulators in dirty areas. Compared to oil-filled designs, this one doesn't need oil sampling, DGA, or leak repair, so it has a lot lower lifetime maintenance cost.

3. Can the winding insulation withstand high-UV desert environments?

Modern units use cycloaliphatic epoxy or UV-resistant polyurethane topcoats. When manufactured according to IEC 60076-6 standards and proven to be strong through accelerated aging tests, the surface integrity is maintained for 30 or more years in high-radiation zones, provided routine cleaning of pollution deposits is performed regularly.

Partner with Xi'an Xikai for Your Next Substation Project

Xi'an Xikai offers tried-and-true dry-type air core reactor solutions designed for 110–500 kV substation environments, with full type test documentation, customizable outdoor configurations, and 25-plus years of international project experience. Contact our expert team for a custom quote and review of your specifications. Reach us at serina@xaxd-electric.com, amber@xaxd-electric.com, or luna@xaxd-electric.com, or visit xaxd-electric.com to explore our complete product range.

References

1. IEEE Transactions on Power Delivery — "Lifecycle Cost Comparison of Dry-Type and Oil-Filled Shunt Reactors in High-Voltage Substations," IEEE, 2019.

2. IEC 60076-6: Power Transformers — Part 6: Reactors — International Electrotechnical Commission, 2007 (revised 2018).

3. IEEE C57.16: IEEE Standard Requirements, Terminology, and Test Code for Dry-Type Air-Core Series-Connected Reactors — IEEE, 2011.

4. CIGRE Technical Brochure 504: Shunt Reactors — CIGRE Working Group B3.25, 2012.

5. Electric Power Systems Research — "Reactive Power Compensation Strategies for Long-Distance EHV Transmission Lines," Elsevier, 2021.

6. IEC 60815-1: Selection and Dimensioning of High-Voltage Insulators Intended for Use in Polluted Conditions — International Electrotechnical Commission, 2008.
