400V Self-healing Capacitor-cylindrical BKMJ0.46-30-3

1.Rated Voltage(Ue)：250v~525v, up to 2000v
2.Frequency：50/60Hz
3.Compact design，equipped with grounding bolt
4.Potting material: PU resin (soft resin)
5.Easy installation and wiring
6.Small size, Light weight
7.Self-healing, Maintenance-free
View details

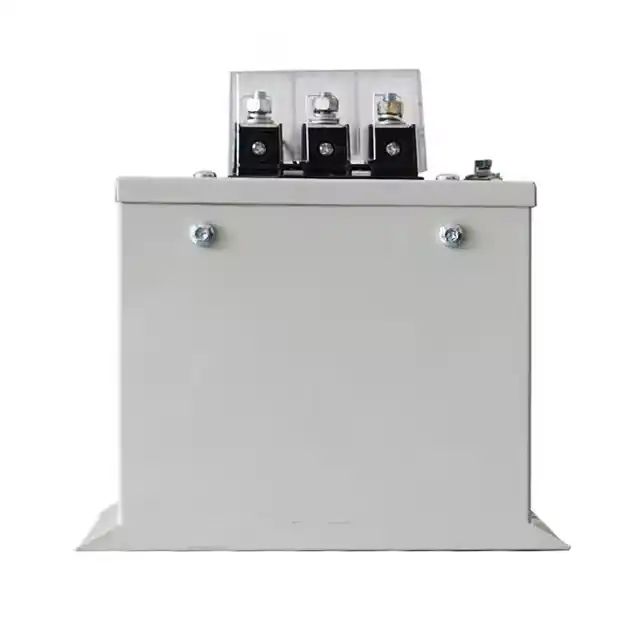

50KVAR Self-healing Capacitor for PFC(Power factor correction)-square BKMJ

1.Rated Voltage(Ue)：100v~1000v
2.Installation Indoor
3.Case material Galvanized steel sheet
4.Output Range 10~100kvar
5.Frequency 50/60Hz
6.Connection configuration D, Y, YN, III
7.Terminal Block ：M6, M8, M10 (According to capacitor power)
8.Lose tanδ<0.001 (20°C 50Hz)
9.Temprature -25°C~50°C
10.Highest Altitude 2000m
11.Capacitor (to wall) pitch ≥50mm
12.Capacitance Deviation -5%~+10%
View details
BKMJ0.4KV Submerged Arc Furnace Capacitor

1.Frequency 60Hz
2.Capacitance Deviation -5%~+10%
3.Max Current 2.5×In
Equipped with discharge resistors
4.Integrated with independent over-voltage protection devices
5.Superior self-healing performance and extended service life
6.Low-loss factor, dry-type design with leakage-free construction
7.Equipped with discharge resistors
View details
10KV High voltage Shunt High-Voltage Capacitors

1.Rated Voltage:6kV,10kV,35kV
2.Rated Capacity:1-100Mvar(per bank)
3.The capacitor is mainly consisted of container and device body.
4.The core is consisted of severalelements and insulation parts. The element is rolled, pressed andmade of two aluminum foilsand somepiece of thin dielectric polypropylene films sandwiched betweenthe two aluminum foils. In order to reach the differentdemand of voltage and capacity, the elements in core is connected by someseriesand parallelmethod. The technology of aluminum foiledge folding and protruding weldingare used to reduce the loss and increase the performance of partial discharging.
View details
